TUNGREASE OMC2 plus: The Next Generation of PD Grease
TUNGREASE OMC2 plus: The Next Generation of PD Grease
Changes the Composition of Metal Surfaces
Reduces Friction Losses and Wear Significantly
By Special Micro-Smoothing Effect
Changes the Composition of Metal Surfaces
Reduces Friction Losses and Wear Significantly
By Special Micro-Smoothing Effect
Reading time: ca. 4 min. | An article from Application Engineering | TUNAP Blog
With OMC2 technology, TUNAP has developed a specific additive combination for lubricants with a special micro-smoothing effect. The unique active complex of OMC2 technology - the pressure capacity strongly increases. Through this, the roughness of the components is not rubbed off, however they reform under the load - leading to a flow process in the micro area, whereby the friction losses and wear are significantly reduced. This additive technology is also known as PD (plastic deformation) and SE (surface engineering).

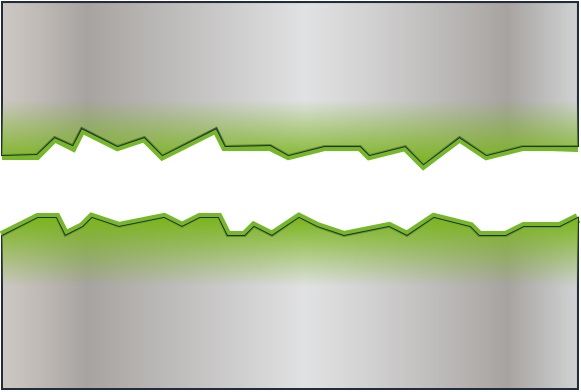

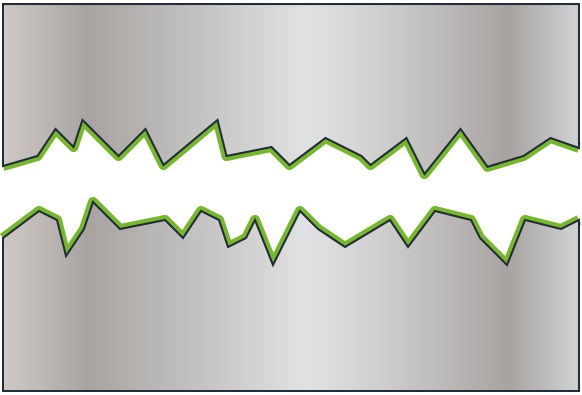

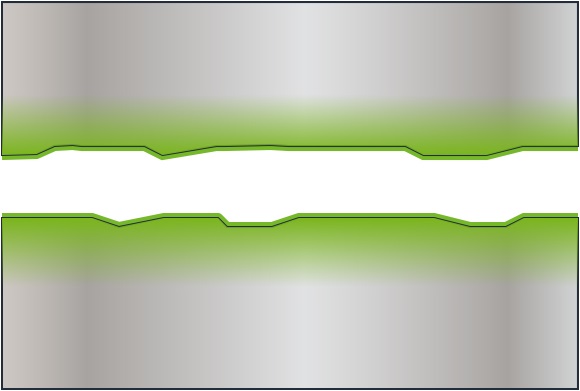

The effect of OMC2 can be divided into the following three phases.

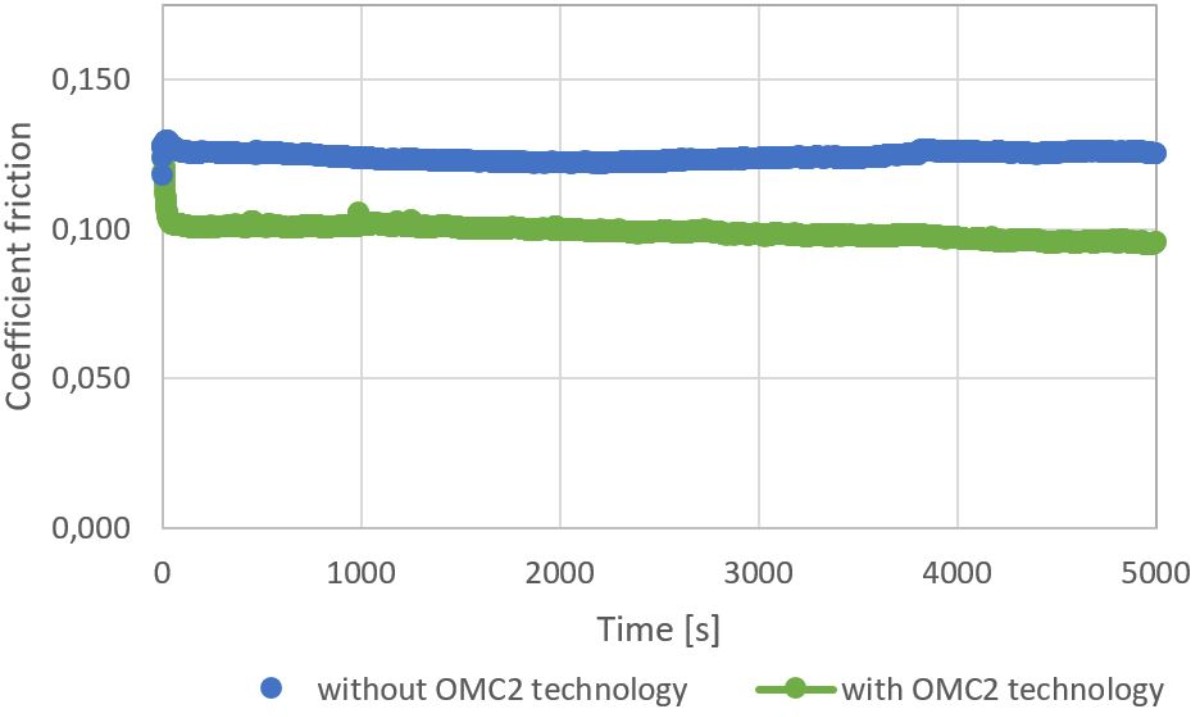

Comparison of the friction coefficients: Model test bench SRV at room temperature (following DIN 51834-2).
On the model test bench SRV, this effect is clearly illustration on a model oil pursuant to DIN 51834-2. The use of TUNAP OMC2 technology provides an approx. 30% reduction in terms of co-efficient friction.
A lower coefficient friction through OMC2 technology enables a range of application advantages:
- Lower energy consumption
- Less heat development
- Less wear
Many of the TUNAP high-performance lubricants contain this OMC2-additive technology. When compared with the use of customary lubricants, its use leads to improved surface quality and an increase in the contact surface. As a result of this, there is a more efficient distribution of load with friction contact and a significant reduction in the coefficient friction.
This enables a range of application advantages when compared with other customary additive technologies for the reduction of friction and wear:
- saving energy and reduction in application temperature as a result of the very low friction co-efficient
- lower maintenance costs through the minimised wear and reduced temperature development
- reduced material, lubricant and disposal costs due to the extended grease consumption duration
- higher level of machine availability due to less failures and downtime or repairs
The TUNGREASE OMC2 plus technology optimises high performance requirements and represents the next generation of PD greases.
It combines this unique additive technology with an expressed temperature-resistant grease for specialist high performance requirements.
Among these, for example, are the long-term lubrication of small gearboxes or the lubrication of rolling or plain bearings that are in high demand under adverse operational conditions, such as extreme pressure, vibrations or high temperature loads.

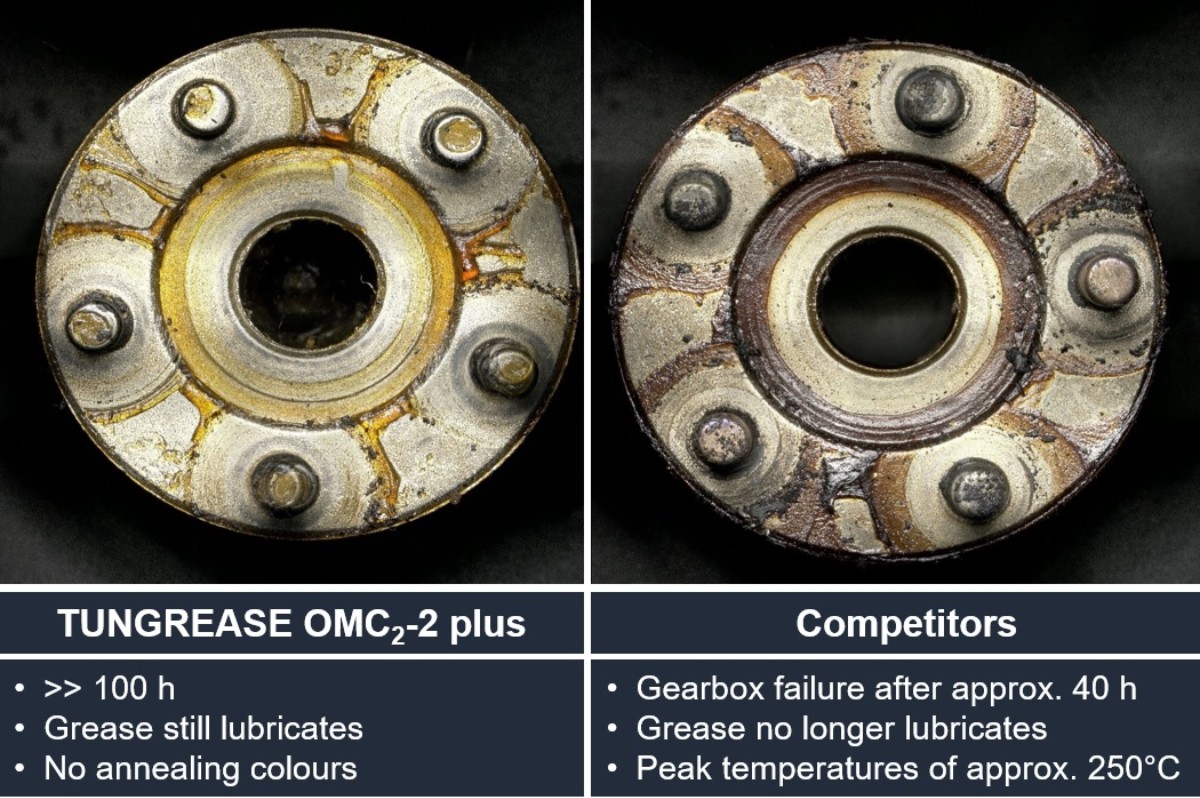

Long-term comparison of TUNGREASE OMC2 with conventional greases.
A comparison between various greases in the small gearbox lubrication of a battery-powered power tool under maximum load in continuous operation demonstrates the efficiency of the specialist OMC2-additive technology in combination with a high-quality grease matrix.
TUNGREASE OMC2-2 plus lasts, in many cases, longer than conventional products. When using them there is an immense maximum temperature where there is increased friction. As a result, this can lead to a fast grease failure with premature failure of the gearbox.
On the other hand, under these conditions TUNGREASE OMC2-2 plus displays its complete effect potential and ensures a reliable and efficient machine operation.
Even in rolling bearing lubrication the OMC2-additive technology exhibits its full effect potential. In a standard test procedure for the performance of lubricants on rolling bearing under practical conditions, TUNGREASE OMC2-2 plus displays a clearly lower degree of wear than other popular competitors. On the other hand, it also establishes an approx. 50% reduced average friction torque, as well as a signification save in energy both when starting and during the course of inertia when compared with other common products.
| DIN 51819-2-C-75/50-40 | TUNGREASE OMC2-2 plus | Competitors |
| Roller wear mw50 | ≤ 2mg | ≥ 20 mg |
| Cage wear mk50 | ≤ 50 mg | ≥ 50 mg |
| Average friction torque at | ||
| ✔ start Mrs | ~8 Nm | ~15 Nm |
| ✔ inertia Mrb | ~3 Nm | ~11 Nm |
Through the specialist OMC OMC2 additive technology, TUNAP a contributing to the increase in efficiency of your applications. Lower operational and energy costs, extended component longevity, increased machine safety, as well as increased relubrication intervals are just a few of the benefits that TUNGREASE OMC OMC2-2 plus provides in relation to the company's sustainability.
